WM Series Residential Water Meters

Bronze Meter with Straight Pipe threads and true-union NPT adapters (1/2" to 2")

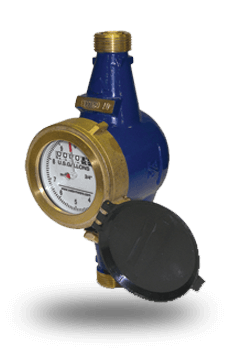

WM Series bronze water meters


WM Residential Water Meters/Submeters

The WM Series residential water meters are multi-jet (inferential) impeller meters. They measure total flow in gallons. The impeller and magnet are the only moving parts in the measuring chamber. The chamber is located in a strainer basket, which allows for high amounts of impurities to be passed through the meter without affecting its operation. The impeller movement is transferred by a magnetic coupling to the hermetically sealed register. These are perfect for submetering water in multi unit apartments & commercial buildings.

Residential Water Meter Construction

These residential water meters consist of an epoxy coated forged bronze housing which has the size and flow direction cast into it, and includes an integral strainer/measuring chamber. The register is hermetically sealed, and can be removed. The register is protected by a tempered glass lens, as well as a hinged metal cover. There is a calibration port which is securely sealed after factory testing and calibration.



Water Meter Register Face

residential water submeters

Features & Benefits

  • Proven Multi-Jet Water Meter Design
  • Hermetically Sealed Dry Dial protected from the elements,won't discolor or fade
  • Integral Strainer in Measuring Chamber protects measuring components from debris
  • Tempered Glass Lens strong & clear for continued readability
  • Hinged Lens Cover protects lens and register from damage
  • Magnetic Drive eliminates potential leak point
  • Easy to Read Register Display odometer and needle dial have large clear digits
  • Low Flow Indicator indicates flow rates down to almost drop by drop - excellent for leak detection
  • Frost Resistant Forged Bronze Body provides strength and prevents pinholes
  • Versatile Installation Orientation can be installed horizontally or vertically (vertical for 1/2" & 3/4" only)
  • Meter Made in America

Typical Applications

  • Residential & Commercial
  • Metering & Sub-Metering
  • Industrial Food & Beverage
  • Plant Process Water
  • Cement Mixers
  • Pond Water Feed Lines

Specifications

Flow Ranges
  • 1-15 gpm up to 8-120 gpm
Odometer
  • 9,999,999 (WM50 - WM100)
  • 99,999,999 (WM150 & WM200)
Needle (WM50 - WM100)
  • 10 gallons per rotation
  • full gallons labled
  • 1/10th gallon markings
Needle (WM150 - WM200)
  • 100 gallons per rotation
  • every 10 gallons labled
  • 1 gallon markings
Materials
  • Epoxy coated forged bronze housing
  • Tempered glass lens
End Connections
  • 1/2" to 2" External non-tapered meter threading
    (comes with Male NPT thread adapters - true union)
Maximum Temperature: Maximum Pressure: (at 73°F)
  • 150psi
Accuracy:
  • +/- 1.5%
