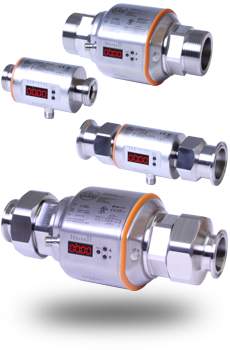

MAG Series Magnetic Inductive Flow Meters

Stainless Steel Meter with NPT, Tri-clamp, or G Connections (1/2" to 2")
Buy a G2 Series Industrial Flow Meter
industrial flow meter



MAG Series Magnetic Inductive Flow Meters

The Assured Automation MAG series are volumetric magnetic induction flow meters that measure flow rate and totals at rates up to 160 gpm, and also measure temperature. The rugged meter body includes electronics, display, user interface, and output signal generation in one compact unit. In addition to being more compact it is also less expensive than comparable meters and sensors.

Output Signals: Analog, binary, pulse and frequency outputs offer various options to process the measured data. The meter is designed for the brewing, HVAC, machine tool, solar, and water industries. It is used with conductive liquids [conductivity: ≥ EC 0.02 (12.8 ppm TDS, 20 µS/cm) / viscosity: < 0.1085 in²/s at 104 °F].



Mag Meter Operation

Features & Benefits

  • One compact sensor provides flow rate, total flow volume, and media temperature
  • Empty pipe detection alerts when pipe is not full
  • Min. and Max. values stored in memory
  • Local digital display and user interface
  • Large flow ranges (up to 100:1 turndown)
  • I/O link output via M12 connector
  • 2 outputs for PNP/NPN switching, pulse, frequency, current, or voltage signals
  • Analog signals are scalable for best resolution within the actual used range
  • Unobstructed flow path is tolerant of particulate and keeps pressure drop low

Typical Applications

  • Brewing & Distilling
  • HVAC
  • Cooling Circuits
  • Machine Tool
  • Solar
  • Power Generation
  • Water

Specifications

Temperature Measuring Range:
-4˚ to 190˚F (0.5˚ resolution, ±1% accuracy)

Flow Measuring Range:
up to 160 gpm

Flow Measuring Accuracy:
± 0.8 % MW + 0.5 % MEW

Flow Measuring Repeatability:
± 0.2 %

Protection Rating:
IP65, IP67

Maximum Pressure:
145 psi to 232 psi depending on model

Accuracy:
+/- 0.8 MW + 0.5 MEW

Materials

  • Stainless Steel Body
  • Stainless Steel, PEEK, and FKM Wetted Parts

End Connections

  • 1/4" NPT (male)
  • 1/2" to 2" NPT (female)
  • 1/2" to 2" G (male)
  • 1 1/2" to 2" Tri-Clamp
