WM-PC Series Plastic Water Meters

Plastic Multi-Jet Water Meter with NPT adapters (1/2" to 1 1/2")
Buy a WM-PC Series Plastic Water Meter

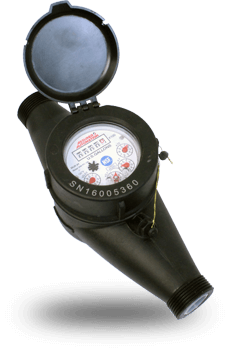

Plastic water meter



Plastic Water Meters/Submeters

The WM-PC Series plastic water meter is an impeller style meter available in sizes from 1/2" to 1-1/2" with a dry type register for residential applications and designed to meet AWWA C708.

Water flows through the meter's strainer (inlet and internal) and into the measuring chamber where it drives the impeller. A driving magnet transmits the movement of the impeller to a driven magnet located within the sealed register. The magnet is connected to a gear train which translates the impeller rotations into volume totalizers displayed on the meter’s register dial face.

The WM-PC Series water meter is top loaded and consists of three basic components: main case, measuring chamber, and head ring. The main cases of all sizes are constructed with a sturdy polymer.

All meters include pipe adapters (2 gaskets, 2 couplings, and 2 nuts) with nuts and couplings made from the same polymer as the main case, except the 1-1/2" which substitutes brass for the coupling material.



Water Meter Register Face

residential water submeters

Features & Benefits

  • Dry Top Multi-jet Design simple, accurate, wide flow range, tolerates low quality water
  • Hinged Lens Cover protects display and register
  • Union End Couplings for easy service
  • Corrosion Resistant All parts in contact with water are constructed of corrosion-resistant materials
  • Plastic body and coupling are made with low-lead brass alloy C87850 and meets potable water standards
  • Impeller is the only moving part in contact with water, giving the meter long life and consistantly reliable operation
  • Extra filter at the inlet of the meter body permits cleaning without having to open the meter
  • Magnetic Drive eliminates potential leak point
  • Easy to Read Register Display odometer and needle dial have large clear digits
  • Dial plate design in US Gallons
  • Optional check valve to avoid reverse flow (lead-free)
  • Optional pulse output consisting of plastic housing with 2-wire (red and black) reed switch and cable

Typical Applications

  • Residential & Commercial
  • Metering & Sub-Metering
  • Industrial Food & Beverage
  • Plant Process Water
  • Cement Mixers
  • Pond Water Feed Lines

Specifications

Flow Ranges
  • 1/2" & 3/4": 1-20 gpm
  • 1": 3-50 gpm
  • 1 1/2": 5-100 gpm
Maximum Reading
  • 9,999,999.99 (050 - 100)
  • 99,999,999.9 (150)
Materials
  • FRP - fiber reinforced polymer
End Connections
  • 1/2" to 1 1/2" External non-tapered meter threading
    (comes with Male NPT thread adapters - true union)
Maximum Temperature: Maximum Pressure:
  • 150psi
Accuracy:
  • +/- 1.5%

Pulse Output Specifications

Sensor Type
  • Dry-contact Reed switch
Pulse Rates
  • 050: 1 or 2 pulses per gallon
  • 075, 100: 1, 2, 10, or 20 pulses per gallon
  • 150: 1 per 1 gallons or 1 per 5 gallo0ns
Maximum Current
  • 20mA
Maximum Voltage
  • 24v (AC or DC)
Cable Length
  • 5' (standard) 2000' max. run
