V Series V-port Ball Valves

V Ball Valves with modulating actuators; 2" to 8"

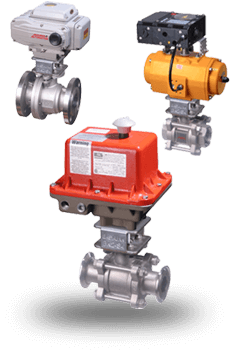

V Series v-port ball valve



V Series V-port Ball Valves

The V-Series Modulating Ball Valves are designed for control of your flow media. Options include 4-20 mA, 3-15 PSI and are available in ½" through 8" Sizes. Various end connections are available such as NPT, Socket Weld, Tri-Clamp, 150# Flanged, and 300# Flanged. The throttling part of the ball valve is constructed from a solid SS ball, not a seat insert. V-Series Ball Valves are characterized to meet your custom flow requirements. Size one up using our Valve Configurator, or call us at 800-899-0553.



V Ball Profiles

V-Port Ball Drillings
Other ball profiles and characterizations available.
Call 1-800-899-0553

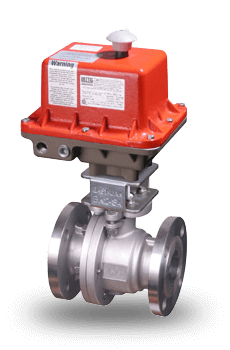

V150F / V300F

Flanged Connections (1/2" to 8")

  • V150F Class 150 / V300F Class 300
  • Protected Seat Design

Materials & Specifications

  • Body: Carbon Steel or Stainless Steel
  • Seats: TFM or 50/50
  • Max Temp:
     TFM: 475°F
     50/50: 525°F
  • Steam Working Pressure:
    TFM: 150 PSI Sat. Steam
    50/50: 250 PSI Sat. Steam

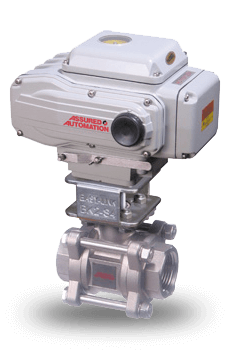

V200 / V300

NPT & Socket Weld (1/2" to 4")

  • 1500 WOG
  • Swing-Out Body Design

Materials & Specifications

  • Body: Carbon Steel or Stainless Steel
  • Seats: TFM or 50/50
  • Max Temp:
     TFM: 475°F
     50/50: 525°F
  • Steam Working Pressure:
    TFM: 150 PSI Sat. Steam
    50/50: 250 PSI Sat. Steam

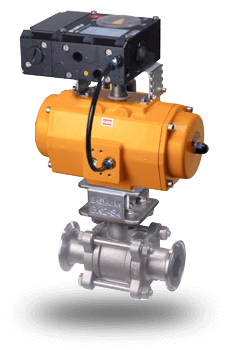

V350T

Tri-Clamp Connections (1/2" to 4")

  • Standard Finish Ra30-35 min
  • Full Body cavity Fillers
  • Swing-Out Body Design

Materials & Specifications

  • Body: Stainless Steel
  • Seats: PTFE
  • Max Temp:
     PTFE: 425°F
  • Steam Working Pressure:
    PTFE: 15 PSI Sat. Steam

Typical Applications

  • Maintaining Flow Rates for continuous batch operation.
  • Controlling Pressure for liquid filling lines.
  • Controlling discharge Temperature of a heat exchanger with a steam feed line.
  • Maintaining Level in a tank.
  • For controlling Heat Jacket Temperature.

Related Articles


Available Actuators (on all valve types)

  • Weatherproof Electric with 4-20mA Positioner
  • Explosion Proof Electric with 4-20mA Positioner
  • Pneumatic (single & double acting) with 4-20 mA Positioner
  • Pneumatic (single & double acting) with 3-15 psi Positioner
Buy a V-port flow control ball valve
