WWM Series Wastewater Flow Meters

Immune to Caustic Effluent and Debris Tolerant - PVC Pipe (1/2" to 4") or Saddle Insertion Mount (1 1/2" to 8")

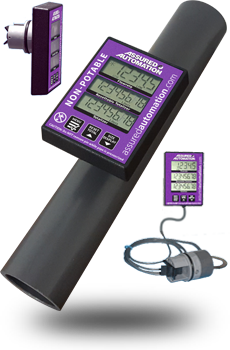

Waste Water Flow Meter



WWM Series Waste Water Flowmeters

This paddle wheel flow meter can monitor flows in pipes ranging in size from 1/2" to 8". Wide range in flow rates, negligible headloss and good accuracy at a reasonable price, continue to make these meters popular. Easy removal for cleaning and repair permit the meters to be mounted in lines with moderate particulate levels.

The paddle wheel, spinning at a rate linearly proportional to the velocity of the flow, activates a switch once per revolution. The time it takes the paddle to rotate, divided into the diameter of the pipe, results in the flow rate. Flow rate variations are minimized by a microprocessor averaging process. The flow rate, a resettable and a non-resettable totalizer are simultaneously displayed.



Saddle Mount Style

Saddle mount "insertion" style mounts to existing pipe through a hole made for the meter's paddle wheel to extend through
Saddle mount Insertion paddle wheel meter

Features & Benefits

  • Flow Ranges: 1-3200 GPM (depending on size)
  • Rugged Construction
  • Designed for Indoor/Outdoor Use
  • Digital Display - Large 1/2" Tall Digits
  • Maximum Batch Total 999,999
  • Approximate Battery Life is 5,000 hrs
  • Displays instantaneous flow rate & flow totals
  • Ability to Field Calibrate (standard)
  • Meter Made in the USA

Typical Applications

  • Brine, Salt Water, and Brackish
  • Agriculture Sprayers
  • Irrigation Systems
  • Commercial Mixing Tanks
  • Geothermal Heating/Cooling Systems
  • Commercial Lawn & Garden
  • Fertilizer Tanks
  • Golf Courses
  • Cement Mixers
  • Public Parks
  • Exterminators
  • Aerial Crop Sprayers
  • Any High Volume Water Mixing Applications

Specifications

Flow Ranges
  • 1/2": 0.6 to 15 gpm
  • 3/4": 1.5 to 30
  • 1": 5 to 55
  • 1 1/2": 10 to 125
  • 2": 15 to 200
  • 3": 40 to 450
  • 4": 60 to 800
  • 6": 120 to 1800
  • 8": 250 to 3200
Materials
  • PVC Waste Water
  • PVC Pipe or saddle
  • 316SS Paddle pin
  • Buna-N o-ring seal
  • ABS electronics housing
Sizes & Mounting Styles
  • 1/2" to 4" Pipe mounted (schedule 40 or 80)
  • 1 1/2" to 8" Insertion mounted
Temperature Range:
  • 20 to 130°F
Maximum Pressure: (at 73°F)
  • 200psi (up to 2")
Accuracy:
  • +/- 1.5% Full Scale
Linearity:
  • +/- 1.5% Full Scale
Repeatability:
  • +/- 1% Full Scale
