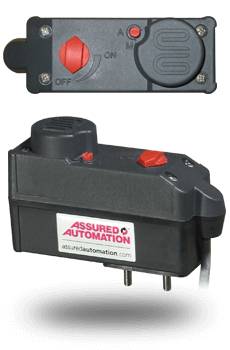

CE Series Miniature Electric Valve Actuators

IP54 (dust and splashing water) weatherproof enclosure; Output Torque from 100 in/lbs.
Buy a miniature electric valve actuator
miniature electric valve actuator



CE Series Miniature Electric Valve Actuators

The CE series electric actuators are low cost, compact, 90° rotary actuators. They are available in 12VDC, 24VDC, or 24VAC. They include a visual position indicator and feature a manual overide which can be operated while attached to the valve.



Valves with CE Series Actuators

  • 26 series SS 2-way Ball valves
    (2-piece; NPT 1/4" to 3/4")
  • 36 series SS 2-way Ball valves
    (3-piece; NPT or Socket Weld 1/4" to 3/4")
  • 101 series Brass 2-way Ball valves
    (NPT 3/8" to 1")
  • 31D series Brass 3-way Ball valves
    (NPT 1/4" to 1/2")
  • 33D series SS 3-way Ball valves
    (NPT 1/4" & 3/8")
  • for lead free brass see SM Series

Features & Benefits

  • ISO 5211, 4-bolt actuator mounting pad for direct mounting to valve or bracket
  • Pre-wired with a cable lead eliminates the need for opening the actuator and wiring in the field
  • Visual position indicator
  • Manual override for emergency operation requires no special tools. Use a screwdriver to switch to manual operation and use a wrench to rotate the position indicator, which in turn rotates the valve
  • Two internal limit switches (0° and 90°) to stop motor
  • Two SPST auxiliary switches to indicate fully open and fully closed positions
  • 100% testing to ensure quality of all valve assemblies
  • Rugged gearbox construction for extended service life

Typical Applications

  • Residential main water shutoff
  • Leak detection system water shutoff
  • Rental unit shutoff

Specifications

Materials
  • Housing (Body & Cover): Ploycarbonate plastic (ABSPC)
ISO 5211 Direct Mount Connections
  • F03 with 9mm star female drive
Torque
  • 100 in/lbs.
Voltages
  • 12VDC
  • 24VDC
  • 24VAC
Electrical Connection
  • Pre-wired with 24" cable
Temperature Range:
  • -4°F to 158°F
Weatherproof Enclosure Rating:
  • IP54 (protection from dust and splashing water)
Electric Motor:
  • Single Phase
Duty Cycle:
  • 50%
