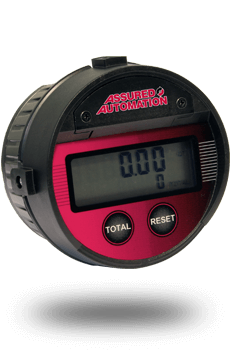

LM Series Lubrication Oil Flow Meter



LM Series Oil Flow Meters

The LM Series oil flow meters are positive displacement meters. They are compact in design and provide exceptional reliability. They are perfect for metering oil. They measure Resettable Batch Total and Non-Resettable Total in either Gallons, Liters, Pints, or Quarts. These meters are designed with oval rotors for optimum accuracy. Pulse Output and Digital Display models are available.



Lube Oil Pumps

lube oil pump

Features & Benefits

  • Digital display with large 1/2" tall digits
  • Two buttons
  • Power Supply: Two AAA Alkaline batteries
  • Measurments: Batch, Reset Total, Non-reset Total, Flow Rate
  • Units of Measure: Gallons, Liters, Pints, Quarts
    (User Selectable)

Typical Applications

  • An affordable solution for bearing oil

Specifications

Flow Range
  • 0.26 - 8 gpm
Materials
  • Housing: Aluminum
  • Wetted Parts: Acetal, Aluminum, Nitril, Steel
End Connections
  • 1/2" NPT
Temperature Range:
  • 23°F to 131°F
Maximum Pressure: (at 73°F)
  • 1500psi (103.5 bar)
Accuracy:
  • +/- 0.5%
buy a lube-oil flow meter
