250LF Series Lead Free Brass Ball Valves - Price List

Effective: Feb-22-2025

NPT Connections & C Series (Dual Rack & Pinion) Pneumatic Actuator

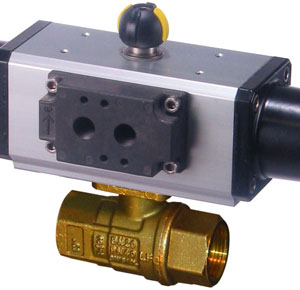

250LF Series automated lead free ball valve with dual scotch yoke spring return pneumatic actuator
Spring Return

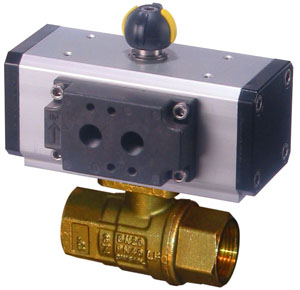

250LF Series automated lead free ball valve with dual rack-n-pinion double acting pneumatic actuator
Double Acting
  Valve
  • Full port
  • Lead free brass body & ball
  • PTFE seats & seals
  • Up to 366°F
  • 29inHg to 600 PSIG (WOG)
    29inHg to 150 PSIG (WSP)
  Actuator
  • Up to 1 million cycles
  • Extruded aluminum alloy
  • -4°F to 176°F
  • ISO 5211 w/ female drive
  • 1/4" NPT NAMUR air ports
Size P series (Scotch Yoke Style) Pneumatic Actuator
Spring Return Double Acting
80 PSIG 60 PSIG 80 PSIG 60 PSIG
Fail OPEN Fail CLOSED Price Fail OPEN Fail CLOSED Price
1/2" C250LFNC8SO C250LFNC8SC $ undefined C250LFNC6SO C250LFNC6SC $ undefined C250LFNC8D $ undefined C250LFNC6D $ undefined
3/4" D250LFNC8SO D250LFNC8SC $ undefined D250LFNC6SO D250LFNC6SC $ undefined D250LFNC8D $ undefined D250LFNC6D $ undefined
1" E250LFNC8SO E250LFNC8SC $ undefined E250LFNC6SO E250LFNC6SC $ undefined E250LFNC8D $ undefined E250LFNC6D $ undefined
1 1/4" F250LFNC8SO F250LFNC8SC $ undefined F250LFNC6SO F250LFNC6SC $ undefined F250LFNC8D $ undefined F250LFNC6D $ undefined
1 1/2" G250LFNC8SO G250LFNC8SC $ undefined G250LFNC6SO G250LFNC6SC $ undefined G250LFNC8D $ undefined G250LFNC6D $ undefined
2" H250LFNC8SO H250LFNC8SC $ undefined H250LFNC6SO H250LFNC6SC $ undefined H250LFNC8D $ undefined H250LFNC6D $ undefined

NPT Connections & P Series (Dual Scotch Yoke) Pneumatic Actuator

250LF Series automated lead free ball valve with dual scotch yoke spring return pneumatic actuator
Spring Return
250LF Series automated lead free ball valve with dual scotch yoke double acting pneumatic actuator
Double Acting
  Valve
  • Full port
  • Lead free brass body & ball
  • PTFE seats & seals
  • Up to 366°F
  • 29inHg to 600 PSIG (WOG)
    29inHg to 150 PSIG (WSP)
  Actuator
  • CISQ cerified
  • Up to 1 million cycles
  • Corrosion resistant aluminum
  • -4°F to 176°F
  • ISO 5211 w/ female drive
  • 1/8" G air ports
Size P series (Scotch Yoke Style) Pneumatic Actuator
Spring Return Double Acting
80 PSIG 60 PSIG 80 PSIG 60 PSIG
Fail OPEN Fail CLOSED Price Fail OPEN Fail CLOSED Price
1/2" C250LFNP8SO C250LFNP8SC $ undefined C250LFNP6SO C250LFNP6SC $ undefined C250LFNP8D $ undefined C250LFNP6D $ undefined
3/4" D250LFNP8SO D250LFNP8SC $ undefined D250LFNP6SO D250LFNP6SC $ undefined D250LFNP8D $ undefined D250LFNP6D $ undefined
1" E250LFNP8SO E250LFNP8SC $ undefined E250LFNP6SO E250LFNP6SC $ undefined E250LFNP8D $ undefined E250LFNP6D $ undefined
1 1/4" F250LFNP8SO F250LFNP8SC $ undefined F250LFNP6SO F250LFNP6SC $ undefined F250LFNP8D $ undefined F250LFNP6D $ undefined
1 1/2" G250LFNP8SO G250LFNP8SC $ undefined G250LFNP6SO G250LFNP6SC $ undefined G250LFNP8D $ undefined G250LFNP6D $ undefined
2" H250LFNP8SO H250LFNP8SC $ undefined H250LFNP6SO H250LFNP6SC $ undefined H250LFNP8D $ undefined H250LFNP6D $ undefined
page 1

250LF Series Lead Free Brass Ball Valves - Price List

Effective: Feb-22-2025

NPT Connections & F Series (Rack & Pinion) Pneumatic Actuator

250LF Series automated lead free ball valve with dual scotch yoke spring return pneumatic actuator
Spring Return
250LF Series automated lead free ball valve with dual scotch yoke double acting pneumatic actuator
Double Acting
  Valve
  • Full port
  • Lead free brass body & ball
  • PTFE seats & seals
  • Up to 366°F
  • 29inHg to 600 PSIG (WOG)
    29inHg to 150 PSIG (WSP)
  Actuator
  • Dual stroke adjustment
  • Up to 1 million cycles
  • Polyurethane coated chromated aluminum
  • -4°F to 176°F
  • ISO 5211 w/ female drive
  • 1/4" NPT NAMUR air ports
Size F series (Rack and Pinion Style) Pneumatic Actuator
Spring Return Double Acting
80 PSIG 60 PSIG 80 PSIG 60 PSIG
Fail OPEN Fail CLOSED Price Fail OPEN Fail CLOSED Price
1/2" C250LFNF8SO C250LFNF8SC $ undefined C250LFNF6SO C250LFNF6SC $ undefined C250LFNF8D $ undefined C250LFNF6D $ undefined
3/4" D250LFNF8SO D250LFNF8SC $ undefined D250LFNF6SO D250LFNF6SC $ undefined D250LFNF8D $ undefined D250LFNF6D $ undefined
1" E250LFNF8SO E250LFNF8SC $ undefined E250LFNF6SO E250LFNF6SC $ undefined E250LFNF8D $ undefined E250LFNF6D $ undefined
1 1/4" F250LFNF8SO F250LFNF8SC $ undefined F250LFNF6SO F250LFNF6SC $ undefined F250LFNF8D $ undefined F250LFNF6D $ undefined
1 1/2" G250LFNF8SO G250LFNF8SC $ undefined G250LFNF6SO G250LFNF6SC $ undefined G250LFNF8D $ undefined G250LFNF6D $ undefined
2" H250LFNF8SO H250LFNF8SC $ undefined H250LFNF6SO H250LFNF6SC $ undefined H250LFNF8D $ undefined H250LFNF6D $ undefined
page 2

250LF Series Lead Free Brass Ball Valves - Price List

Effective: Feb-22-2025

NPT Connections & V4 Series Weatherproof Electric Actuators

250LF Series automated lead free ball valve with dual scotch yoke spring return pneumatic actuator     Valve
  • Full port
  • Lead free brass body & ball
  • PTFE seats & seals
  • Up to 366°F
  • 29inHg to 600 PSIG (WOG)
    29inHg to 150 PSIG (WSP)
  Actuator
  • Epoxy coated aluminum cover
  • 0°F to 160°F
  • ISO 5211 with female drive
  • Single phase motor
  • DC units 100% duty cycle
  • AC units 25% or 75% duty cycle
  • 1/2" NPT conduit with external leads
  • NEMA 4/4X
Size V4 Series Weatherproof Electric Actuator
120VAC 12VDC 24VDC
1/2" C250LFNV4A $ undefined C250LFNV4F $ undefined C250LFNV4B $ undefined
3/4" D250LFNV4A $ undefined D250LFNV4F $ undefined D250LFNV4B $ undefined
1" E250LFNV4A $ undefined E250LFNV4F $ undefined E250LFNV4B $ undefined
1 1/4" F250LFNV4A $ undefined F250LFNV4F $ undefined F250LFNV4B $ undefined
1 1/2" G250LFNV4A $ undefined G250LFNV4F $ undefined G250LFNV4B $ undefined
2" H250LFNV4A $ undefined H250LFNV4F $ undefined H250LFNV4B $ undefined

NPT Connections & R4 Series Weatherproof Electric Actuators

250LF Series automated lead free ball valve with dual scotch yoke spring return pneumatic actuator     Valve
  • Full port
  • Lead free brass body & ball
  • PTFE seats & seals
  • Up to 366°F
  • 29inHg to 600 PSIG (WOG)
    29inHg to 150 PSIG (WSP)
  Actuator
  • Polycarbonate housing cover
  • 0°F to 150°F
  • ISO 5211 with female drive
  • Single phase motor
  • DC units 100% duty cycle
  • AC units 25% duty cycle
  • 1/2" NPT conduit entry and internal terminal strip
  • NEMA 4/4X
Size R4 Series Weatherproof Electric Actuator
120VAC 12VDC 24VDC
1/2" C250LFNR4A $ undefined C250LFNR4F $ undefined C250LFNR4B $ undefined
3/4" D250LFNR4A $ undefined D250LFNR4F $ undefined D250LFNR4B $ undefined
1" E250LFNR4A $ undefined E250LFNR4F $ undefined E250LFNR4B $ undefined
1 1/4" F250LFNR4A $ undefined F250LFNR4F $ undefined F250LFNR4B $ undefined
1 1/2" G250LFNR4A $ undefined G250LFNR4F $ undefined G250LFNR4B $ undefined
2" H250LFNR4A $ undefined H250LFNR4F $ undefined H250LFNR4B $ undefined
page 3

250LF Series Lead Free Brass Ball Valves - Price List

Effective: Feb-22-2025

NPT Connections & S4 Series Multi-Voltage, Weatherproof Electric Actuators

250LF Series automated lead free ball valve with dual scotch yoke spring return pneumatic actuator     Valve
  • Full port
  • Lead free brass body & ball
  • PTFE seats & seals
  • Up to 366°F
  • 29inHg to 600 PSIG (WOG)
    29inHg to 150 PSIG (WSP)
  Actuator
  • Anti-corrosive polyamide housing
  • -4°F to 158°F
  • ISO 5211 with female drive
  • Single phase motor
  • 75% duty cycle
  • External DIN plugs with PG9 cable gland connectors
  • NEMA 4/4X

Size S4 Series Multi-Voltage Weatherproof Electric Actuator
UNIVERSAL Voltage (24 to 240 VAC/DC)
1/2" C250LFNS4UV $ undefined
3/4" D250LFNS4UV $ undefined
1" E250LFNS4UV $ undefined
1 1/4" F250LFNS4UV $ undefined
1 1/2" G250LFNS4UV $ undefined
2" H250LFNS4UV $ undefined

NPT Connections & B7 Series Explosion Proof Electric Actuators

250LF Series automated lead free ball valve with dual scotch yoke spring return pneumatic actuator     Valve
  • Full port
  • Lead free brass body & ball
  • PTFE seats & seals
  • Up to 366°F
  • 29inHg to 600 PSIG (WOG)
    29inHg to 150 PSIG (WSP)
  Actuator
  • Epoxy powder coated aluminum housing
  • -40°F to 150°F
  • ISO 5211 with female drive shaft
  • Single phase motor
  • 50% duty cycle
  • Two 1/2" NPT conduit entries and internal wiring terminal
  • NEMA 4/4X/7
Size B7 Series Explosion Proof Electric Actuator
120VAC 24VDC
1/2" C250LFNB7A $ undefined C250LFNB7B $ undefined
3/4" D250LFNB7A $ undefined D250LFNB7B $ undefined
1" E250LFNB7A $ undefined E250LFNB7B $ undefined
1 1/4" F250LFNB7A $ undefined F250LFNB7B $ undefined
1 1/2" G250LFNB7A $ undefined G250LFNB7B $ undefined
2" H250LFNB7A $ undefined H250LFNB7B $ undefined
