36 Series Stainless Steel Ball Valves - Price List

Effective: Dec-21-2024

Tri-clamp Connections & C Series (Rack-n-Pinion) Pneumatic Actuator
36 Series stainless steel ball valve with dual rack-n-pinion spring return pneumatic actuator
Spring Return

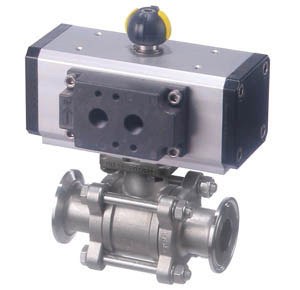

36 Series stainless steel ball valve with dual rack-n-pinion double acting pneumatic actuator
Double Acting		   Valve
  • Full port
  • Stainless steel body & ball
  • RPTFE seats & seals
  • -30°F to 400°F
  • 29inHg to 2000 PSIG (1/4" to 1")
    29inHg to 1500 PSIG (1 1/4" to 2")
    29inHg to 1000 PSIG (2 1/2" to 3")
   Actuator
  • Up to 1 million cycles
  • Extruded aluminum alloy
  • -4°F to 176°F
  • ISO 5211 w/ female drive
  • 1/4" NPT NAMUR air ports
Size C series (Rack-n-Pinion) Pneumatic Actuator
Spring Return Double Acting
80 PSIG 60 PSIG 80 PSIG 60 PSIG
Fail OPEN Fail CLOSED Price Fail OPEN Fail CLOSED Price
1/2" C36CPFC8SO C36CPFC8SC $ C36CPFC6SO C36CPFC6SC $ C36CPFC8D $ C36CPFC6D $
3/4" D36CPFC8SO D36CPFC8SC $ D36CPFC6SO D36CPFC6SC $ D36CPFC8D $ D36CPFC6D $
1" E36CPFC8SO E36CPFC8SC $ E36CPFC6SO E36CPFC6SC $ E36CPFC8D $ E36CPFC6D $
1 1/2" G36CPFC8SO G36CPFC8SC $ G36CPFC6SO G36CPFC6SC $ G36CPFC8D $ G36CPFC6D $
2" H36CPFC8SO H36CPFC8SC $ H36CPFC6SO H36CPFC6SC $ H36CPFC8D $ H36CPFC6D $
3" J36CPFC8SO J36CPFC8SC $ J36CPFC6SO J36CPFC6SC $ J36CPFC8D $ J36CPFC6D $
4" K36CPFC8SO K36CPFC8SC $ K36CPFC6SO K36CPFC6SC $ K36CPFC8D $ K36CPFC6D $
page 1

36 Series Stainless Steel Ball Valves - Price List

Effective: Dec-21-2024

Tri-clamp Connections & P Series (Dual Scotch Yoke) Pneumatic Actuator
36 Series stainless steel ball valve with dual scotch yoke spring return pneumatic actuator
Spring Return
36 Series stainless steel ball valve with dual scotch yoke double acting pneumatic actuator
Double Acting		   Valve
  • Full port
  • Stainless steel body & ball
  • RPTFE seats & seals
  • -30°F to 400°F
  • 29inHg to 2000 PSIG (1/4" to 1")
    29inHg to 1500 PSIG (1 1/4" to 2")
    29inHg to 1000 PSIG (2 1/2" to 3")
   Actuator
  • CISQ cerified
  • Up to 1 million cycles
  • Corrosion resistant aluminum
  • -4°F to 176°F
  • ISO 5211 w/ female drive
  • 1/8" G Threads on air ports
    (adapter available to convert to 1/4" NPT NAMUR air ports
    PN: KBNE0015-R $ )
Size P series (Scotch Yoke Style) Pneumatic Actuator
Spring Return Double Acting
80 PSIG 60 PSIG 80 PSIG 60 PSIG
Fail OPEN Fail CLOSED Price Fail OPEN Fail CLOSED Price
1/2" C36CPFP8SO C36CPFP8SC $ C36CPFP6SO C36CPFP6SC $ C36CPFP8D $ C36CPFP6D $
3/4" D36CPFP8SO D36CPFP8SC $ D36CPFP6SO D36CPFP6SC $ D36CPFP8D $ D36CPFP6D $
1" E36CPFP8SO E36CPFP8SC $ E36CPFP6SO E36CPFP6SC $ E36CPFP8D $ E36CPFP6D $
1 1/2" G36CPFP8SO G36CPFP8SC $ G36CPFP6SO G36CPFP6SC $ G36CPFP8D $ G36CPFP6D $
2" H36CPFP8SO H36CPFP8SC $ H36CPFP6SO H36CPFP6SC $ H36CPFP8D $ H36CPFP6D $
3" - - - - - - J36CPFP8D $ - -
page 2

36 Series Stainless Steel Ball Valves - Price List

Effective: Dec-21-2024

Tri-clamp Connections & F Series (Rack & Pinion) Pneumatic Actuator
36 Series stainless steel ball valve with dual scotch yoke spring return pneumatic actuator
Spring Return		 36 Series stainless steel ball valve with dual scotch yoke double acting pneumatic actuator
Double Acting		   Valve
  • Full port
  • Stainless steel body & ball
  • RPTFE seats & seals
  • -30°F to 400°F
  • 29inHg to 2000 PSIG (1/4" to 1")
    29inHg to 1500 PSIG (1 1/4" to 2")
    29inHg to 1000 PSIG (2 1/2" to 3")
   Actuator
  • Dual stroke adjustment
  • Up to 1 million cycles
  • Polyurethane coated chromated aluminum
  • -4°F to 176°F
  • ISO 5211 w/ female drive
  • 1/4" NPT NAMUR air ports
Size F series (Rack and Pinion Style) Pneumatic Actuator
Spring Return Double Acting
80 PSIG 60 PSIG 80 PSIG 60 PSIG
Fail OPEN Fail CLOSED Price Fail OPEN Fail CLOSED Price
1/2" C36CPFF8SO C36CPFF8SC $ C36CPFF6SO C36CPFF6SC $ C36CPFF8D $ C36CPFF6D $
3/4" D36CPFF8SO D36CPFF8SC $ D36CPFF6SO D36CPFF6SC $ D36CPFF8D $ D36CPFF6D $
1" E36CPFF8SO E36CPFF8SC $ E36CPFF6SO E36CPFF6SC $ E36CPFF8D $ E36CPFF6D $
1 1/2" G36CPFF8SO G36CPFF8SC $ G36CPFF6SO G36CPFF6SC $ G36CPFF8D $ G36CPFF6D $
2" H36CPFF8SO H36CPFF8SC $ H36CPFF6SO H36CPFF6SC $ H36CPFF8D $ H36CPFF6D $
3" J36CPFF8SO J36CPFF8SC $ J36CPFF6SO J36CPFF6SC $ J36CPFF8D $ J36CPFF6D $
4" K36CPFF8SO K36CPFF8SC $ K36CPFF6SO K36CPFF6SC $ K36CPFF8D $ K36CPFF6D $
page 3

36 Series Stainless Steel Ball Valves - Price List

Effective: Dec-21-2024

Tri-clamp Connections & V4 Series Weatherproof Electric Actuators
36 Series stainless steel ball valve with dual scotch yoke spring return pneumatic actuator     Valve
  • Full port
  • Stainless steel body & ball
  • RPTFE seats & seals
  • -30°F to 400°F
  • 29inHg to 2000 PSIG (1/4" to 1")
    29inHg to 1500 PSIG (1 1/4" to 2")
    29inHg to 1000 PSIG (2 1/2" to 3")
   Actuator
  • Epoxy coated aluminum cover
  • 0°F to 160°F
  • ISO 5211 with female drive
  • Single phase motor
  • DC units 100% duty cycle
  • AC units 25% or 75% duty cycle
  • 1/2" NPT conduit with external leads
  • NEMA 4/4X
Size V4 Series Weatherproof Electric Actuator
120VAC 12VDC 24VDC
1/2" C36CPFV4A $ C36CPFV4F $ C36CPFV4B $
3/4" D36CPFV4A $ D36CPFV4F $ D36CPFV4B $

Tri-clamp Connections & R4 Series Weatherproof Electric Actuators
36 Series stainless steel ball valve with dual scotch yoke spring return pneumatic actuator     Valve
  • Full port
  • Stainless steel body & ball
  • RPTFE seats & seals
  • -30°F to 400°F
  • 29inHg to 2000 PSIG (1/4" to 1")
    29inHg to 1500 PSIG (1 1/4" to 2")
    29inHg to 1000 PSIG (2 1/2" to 3")
   Actuator
  • Polycarbonate housing cover
  • 0°F to 150°F
  • ISO 5211 with female drive
  • Single phase motor
  • DC units 100% duty cycle
  • AC units 25% duty cycle
  • 1/2" NPT conduit entry and internal terminal strip
  • NEMA 4/4X
Size R4 Series Weatherproof Electric Actuator
120VAC 12VDC 24VDC
1/2" C36CPFR4A $ C36CPFR4F $ C36CPFR4B $
3/4" D36CPFR4A $ D36CPFR4F $ D36CPFR4B $
1" E36CPFR4A $ E36CPFR4F $ E36CPFR4B $
1 1/2" G36CPFR4A $ G36CPFR4F $ G36CPFR4B $
page 4

36 Series Stainless Steel Ball Valves - Price List

Effective: Dec-21-2024

Tri-clamp Connections & S4 Series Multi-Voltage, Weatherproof Electric Actuators
36 Series stainless steel ball valve with dual scotch yoke spring return pneumatic actuator     Valve
  • Full port
  • Stainless steel body & ball
  • RPTFE seats & seals
  • -30°F to 400°F
  • 29inHg to 2000 PSIG (1/4" to 1")
    29inHg to 1500 PSIG (1 1/4" to 2")
    29inHg to 1000 PSIG (2 1/2" to 3")
   Actuator
  • Anti-corrosive polyamide housing
  • -4°F to 158°F
  • ISO 5211 with female drive
  • Single phase motor
  • 75% duty cycle
  • External DIN plugs with PG9 cable gland connectors
  • NEMA 4/4X

Size S4 Series Multi-Voltage Weatherproof Electric Actuator
UNIVERSAL Voltage (24 to 240 VAC/DC)
1/2" C36CPFS4UV $
3/4" D36CPFS4UV $
1" E36CPFS4UV $
1 1/2" G36CPFS4UV $
2" H36CPFS4UV $
3" J36CPFS4UV $
4" K36CPFS4UV $

Tri-clamp Connections & K4 Series Weatherproof Electric Actuators
36 Series stainless steel ball valve with dual scotch yoke spring return pneumatic actuator     Valve
  • Full port
  • Stainless steel body & ball
  • RPTFE seats & seals
  • -30°F to 400°F
  • 29inHg to 2000 PSIG (1/4" to 1")
    29inHg to 1500 PSIG (1 1/4" to 2")
    29inHg to 1000 PSIG (2 1/2" to 3")
   Actuator
  • Aluminum alloy housing
  • 14°F to 131°F
  • ISO 5211 with female drive
  • Single phase motor
  • 75% or 100% duty cycle
  • 1/2" NPT conduit entry with cable gland
  • NEMA 4/4X
Size K4 Series Weatherproof Electric Actuator
120VAC
1/2" C36CPFK4A $
3/4" D36CPFK4A $
1" E36CPFK4A $
1 1/2" G36CPFK4A $
2" H36CPFK4A $
3" J36CPFK4A $
4" K36CPFK4A $
page 5

36 Series Stainless Steel Ball Valves - Price List

Effective: Dec-21-2024

Tri-clamp Connections & B7 Series Explosion Proof Electric Actuators
36 Series stainless steel ball valve with dual scotch yoke spring return pneumatic actuator     Valve
  • Full port
  • Stainless steel body & ball
  • RPTFE seats & seals
  • -30°F to 400°F
  • 29inHg to 2000 PSIG (1/4" to 1")
    29inHg to 1500 PSIG (1 1/4" to 2")
    29inHg to 1000 PSIG (2 1/2" to 3")
   Actuator
  • Epoxy powder coated aluminum housing
  • -40°F to 150°F
  • ISO 5211 with female drive shaft
  • Single phase motor
  • 50% duty cycle
  • Two 1/2" NPT conduit entries and internal wiring terminal
  • NEMA 4/4X/7
Size B7 Series Explosion Proof Electric Actuator
120VAC 24VDC
1/2" C36CPFB7A $ C36CPFB7B $
3/4" D36CPFB7A $ D36CPFB7B $
1" E36CPFB7A $ E36CPFB7B $
1 1/2" G36CPFB7A $ G36CPFB7B $
2" H36CPFB7A $ H36CPFB7B $
3" J36CPFB7A $ J36CPFB7B $
4" K36CPFB7A $ K36CPFB7B $
page 6

36 Series Stainless Steel Ball Valves - Price List

Effective: Dec-21-2024

Tri-clamp Connections & Manual Lever Operators
36 Series stainless steel ball valve with dual scotch yoke spring return pneumatic actuator Valve
  • Full port
  • Stainless steel body & ball
  • RPTFE seats & seals
  • -30°F to 400°F
  • 29inHg to 2000 PSIG (1/4" to 1")
    29inHg to 1500 PSIG (1 1/4" to 2")
    29inHg to 1000 PSIG (2 1/2" to 3")
Size Manual Ball Valves
1/2" C36CPFM $
3/4" D36CPFM $
1" E36CPFM $
1 1/2" G36CPFM $
2" H36CPFM $
3" J36CPFM $
4" K36CPFM $

Spare Parts and Seal Replacement Kits
36 Series stainless steel ball valve body 36 Series stainless steel ball valve with dual scotch yoke spring return pneumatic actuator
Size Seat & Seal Replacement Kits
1/2" XA36PRKF03 $
3/4" XA36PRKF04 $
1" XA36PRKF05 $
1 1/2" XA36PRKF07 $
2" XA36PRKF08 $
3" XA36PRKF10 $
4" XA36PRKF11 $
